ESIA series

ESIA series special power

  • Detailed introduction

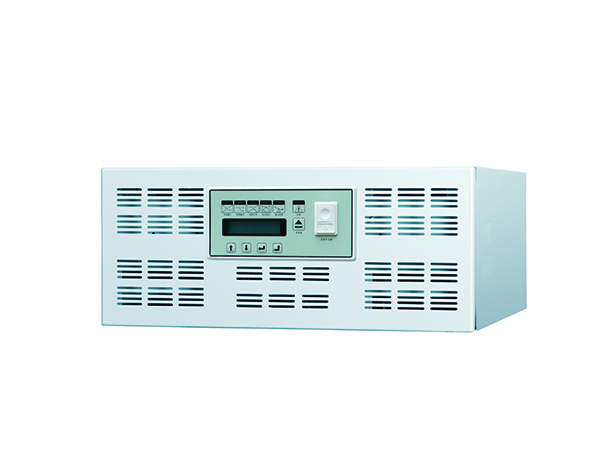

ESIA series power dedicated UPS (1-40kva)
ESIA SERIES INDUSTRIAL UPS FOR ELECTRICITY
ESIA series power dedicated UPS has been widely used in China's power field. The product is specially designed and manufactured for small and medium-sized substations, power plants and other power fields according to the technical standards of the power industry. At the same time, combined with the characteristics of China's power grid, targeted design is carried out. Mature technology creates excellent quality, which is a more reliable guarantee for the power system.
Main characteristics
The standard input and output double isolation transformer realizes the isolation of AC and DC;
The eighth generation industrial standard design is adopted to adapt to the harsh industrial environment of the power plant;
The standard configuration of large capacity check diode avoids the impact on the DC side DC screen;
Humanized control design, no strict control sequence, safe and simple to use;
Chinese / English LCD panel, covering various operation data and status;
RS232 / RS485 interface, optional SNMP card; Support Modbus communication protocol and unattended;
DC cold start function, DC circuit has no surge current;
The two-stage phase-locked loop filter synchronization circuit is compatible with the generator;
Reliable static bypass function and wide synchronization range ensure real uninterrupted;
Strong anti-interference ability, electromagnetic immunity / compatibility through en5009-2 and GB / T17626;
Built in manual maintenance bypass switch to further ensure the continuity of load operation;
Adopt adaptive parallel connection without master and slave, "n + 1" direct parallel connection without parallel cabinet;
Perfect protection measures ensure the reliable operation of the system.

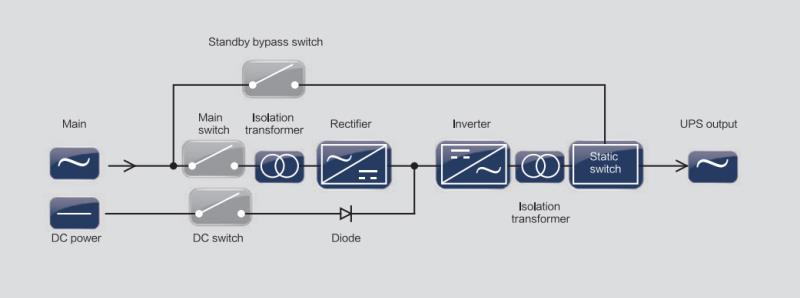

System architecture

Optional configuration
Upsilon 2000 intelligent monitoring software package
Modbus protocol converter
SNMP network web adapter card
Voltage / current / frequency transmitter
Battery monitoring module – dcmantm
Charging module
Multiple redundant parallel machines
Manual maintenance bypass switch
Bypass isolation voltage stabilizing cabinet
AC output distribution cabinet
ATS dual input switch
application area
ESIA series power dedicated UPS is applicable to thermal power plants, hydropower plants, garbage power plants, LNG power plants, transmission and distribution, substations and other power related fields.
Production control and protection system
Distributed control system DCS, power load control system PLC, safety protection system ESD, digital electro-hydraulic regulator DEH
Boiler safety monitoring system, relay protection device, automatic fire alarm system
Production equipment
Special motors, special valves, automatic and protective devices
Precision instruments and transmitters, actuators
Electrical measurement and protection devices
Temperature, pressure, flow, material level, analytical instrument and transmitter
Control actuator, solenoid valve, electrical converter
Computer information system
Network computer monitoring system NCS
Control system peripheral equipment CRT, engineer station
Computer monitoring and monitoring system
Fault recorder
