ESIA series

ESIA series industrial-grade

  • Detailed introduction

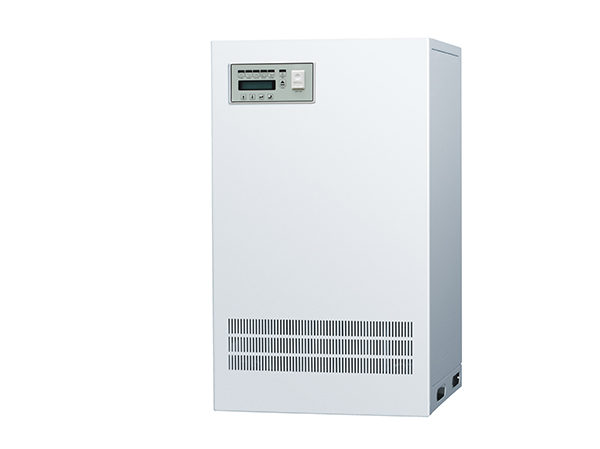

ESIA series industrial UPS (1-40kva)
ESIA SERIES INDUSTRIAL UPS
ESIA series industrial UPS integrates many years of UPS R & D and manufacturing experience of insbailey, and is designed for industrial fields such as oil, natural gas, conventional power plant, chemical industry, metallurgy, marine engineering and so on. The whole machine has reliable performance and convenient maintenance and management. It is a high-performance industrial uninterruptible power supply integrating safety, intelligence and humanization.
Main characteristics
Adopt the mature eighth generation industrial standard design, which can adapt to the harsh industrial environment;
Humanized control design, no strict control sequence, safe and simple to use;
Chinese / English LCD panel, covering various operation data and status;
RS232 / RS485 interface, optional SNMP card; Support Modbus communication protocol and unattended;
Power frequency super isolation design to effectively protect the load and equipment safety;
Modular design, mean time between failures and maintenance < 0.5 hours;
DC cold start function, DC circuit has no surge current;
The two-stage phase-locked loop and filter synchronization circuit are compatible with the generator;
Reliable static bypass function and wide synchronization range ensure real uninterrupted;
Strong anti-interference ability, electromagnetic immunity / compatibility through en5009-2 and GB / T17626;
Built in manual maintenance bypass switch to further ensure the continuity of load operation;
Adopt adaptive parallel connection without master and slave, "n + 1" direct parallel connection without parallel cabinet;
Perfect protection measures ensure the reliable operation of the system.

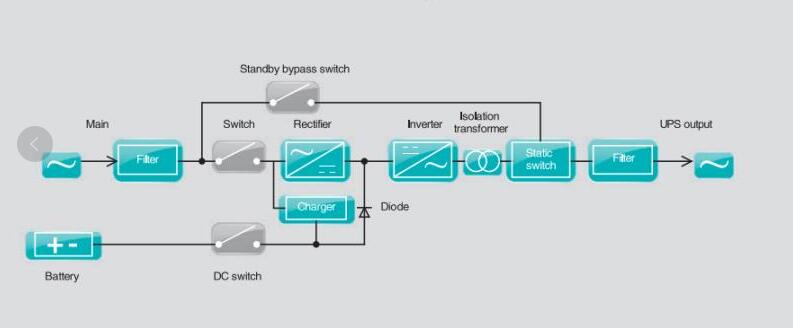

System architecture
Rectifier, inverter, isolation transformers, non-return diode, static switch, etc.



Optional configuration
Upsilon 2000 intelligent monitoring software package
Modbus protocol converter
SNMP network web adapter card
Voltage / current / frequency transmitter
Battery monitoring module – dcmantm
Input isolation transformer
Multiple redundant parallel machines
Manual maintenance bypass switch
Bypass isolation voltage stabilizing cabinet
AC output distribution cabinet
ATS dual input switch
application area
ESIA series industrial UPS is applicable to power, petroleum, chemical, marine, military, aviation, rail transit, industrial manufacturing, shipbuilding and other industrial fields.
Production control and protection system
Distributed control system DCS, power load control system PLC, safety protection system ESD, digital electro-hydraulic regulator DEH
Boiler safety monitoring system, relay protection device, automatic fire alarm system
Production equipment
Special motors, special valves, automatic and protective devices
Precision instruments and transmitters, actuators
Electrical measurement and protection devices
Temperature, pressure, flow, material level, analytical instrument and transmitter
Control actuator, solenoid valve, electrical converter
Computer information system
Network computer monitoring system NCS
Control system peripheral equipment CRT, engineer station
Computer monitoring and monitoring system
Fault recorder
